Description

PortaNet’s CycleCounter® is the world’s first LoRaWAN® based sensor for status and usage data of moving real estate elements like windows and doors.

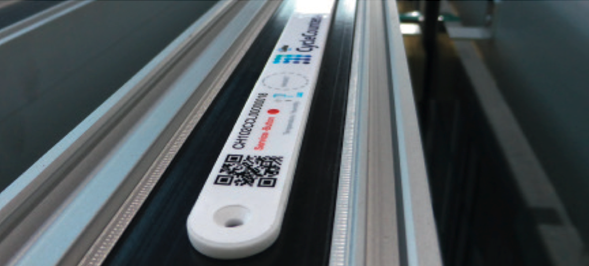

CycleCounter® sensor

Data on usage like number of openings, not allowed open elements, tilt and shocks, temperature and humidity and additional parameters is available as just-in-time alert or ad-hoc report.

Preventive maintenance and selling tailor made service-contracts becomes easy with PortaNet’s CycleCounter® since now based on actual usage and condition.

With MyPortaNet users like property owners and managers, facility managers, manufacturers of doors and windows, service companies or tenants get access to PortaNet’s complete and plug&play IoT based cloud solution incl. iOS and Android App.

CycleCounter® and MyPortaNet Portal and App set completely new standards for window and door management:

  • DATA ON ACTUAL WINDOW & DOOR USAGE
  • BASIS FOR PREVENTIVE AND WELL PLANNED MAINTENANCE
  • TAILOR MADE AND TRANSPARENT DATA BASED MAINTENANCE CONTRACTS
  • REDUCTION OF ENERGY USE AND CONTROL EFFORT DUE TO UNCLOSED WINDOWS & DOORS – INCL. TILTED WINDOW DETECTION
  • COST REDUCTION AS WELL AS DRIVER FOR INCREASED SERVICE BUSINESS WITH IMPROVED CUSTOMER SATISFACTION

Solution

By using the plug&play MyPortaNet IoT based cloud solution, the movable real estate elements like windows and doors can be digitized very simply.

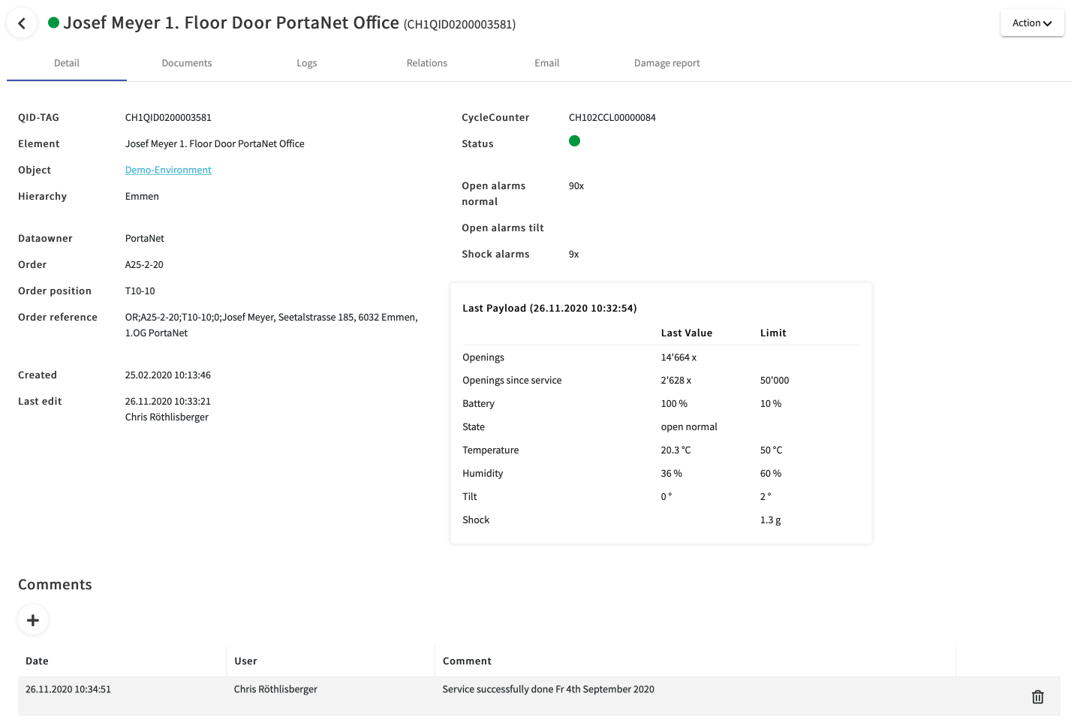

CycleCounter® data on usage like number of openings, not allowed open elements, tilt and shocks, temperature and humidity and additional parameters is available as just-in-time alert or ad-hoc report in MyPortaNet Portal:

MyPortanet dashboard

Detailed sensor data is also available in an easy to read log and can be exported as CSV file for further analysis.

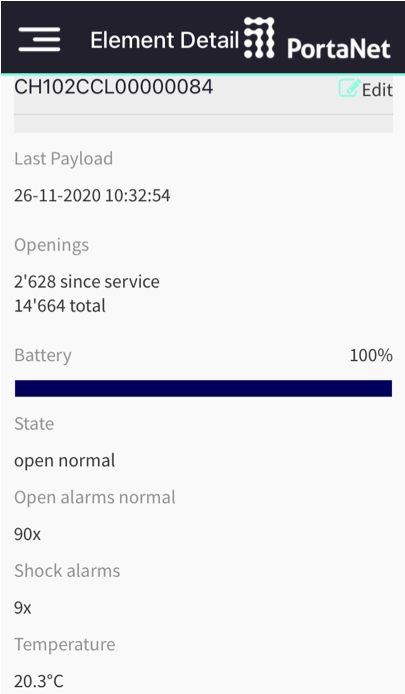

MyPortaNet iOS and Android App is used for simple and fast setup of CycleCounters® as well as to access current data:

MyPortanet dashboard

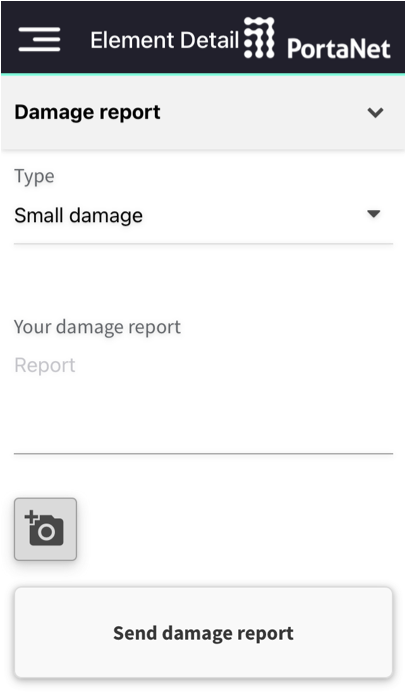

Furthermore the MyPortaNet App allows all users to send damage reports incl. pictures right from their smartphone to the owner of the defective window or door:

MyPortanet dashboard

Paying users can also use the MyPortaNet App as a basis for simple mobile maintenance or control processes: written or QR code scanned comments are saved in the elements digital twin and can be exported as CSV for reporting.

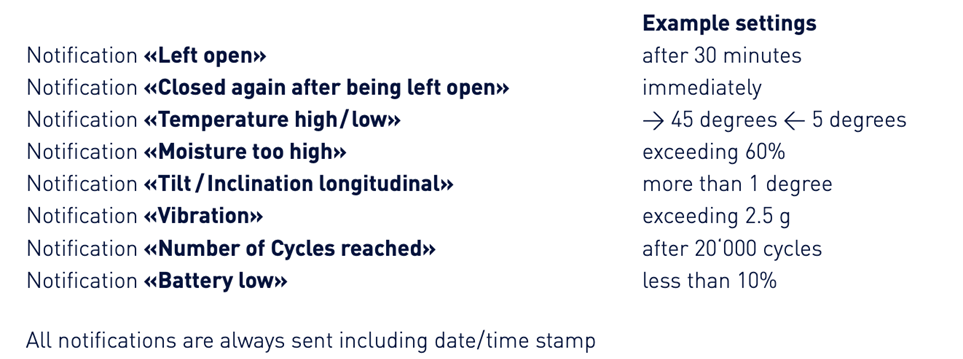

Following examples of CycleCounter® status and usage data incl. default thresholds:

MyPortanet dashboard

Application

  1. Plug&play CycleCounters® are installed at critical windows and doors and set up using MyPortaNet App
  2. The sensors permanently monitor window or door usage and transmit the encrypted data via LoRaWAN® radio transmission to a pre-configured plug&play LoRaWAN® gateway within proximity
  3. All gateways listen for and receive sensor radio transmissions, and forward the encrypted data to the LORIOT LoRaWAN® Network Server.
  4. The received encrypted data is authenticated, and the network server routes the data via output API to MyPortaNetAPI
  5. Users can access CycleCounter® as well as additional data like damage reports in MyPortaNet Portal or App

The return

Digital window and door management for preventive and well planned maintenance and tailor made transparent data based service-contracts – reduce costs while increasing your service business and customer satisfaction!

Window and door status and usage data can also be shared with other MyPortaNet accounts e.g. property owners and managers, facility managers, service companies or tenants. Access rights for data sharing with other accounts can of course be configured on a very detailed level.

CycleCounters® and MyPortaNet Portal and App set completely new standards for window and door management and is the starting point to grow your company into service business:

  • DATA ON ACTUAL WINDOW & DOOR USAGE
  • BASIS FOR PREVENTIVE AND WELL PLANNED MAINTENANCE
  • TAILOR MADE AND TRANSPARENT DATA BASED MAINTENANCE CONTRACTS
  • REDUCTION OF ENERGY USE AND CONTROL EFFORT DUE TO UNCLOSED WINDOWS & DOORS – INCL. TILTED WINDOW DETECTION
  • COST REDUCTION AS WELL AS DRIVER FOR INCREASED SERVICE BUSINESS WITH IMPROVED CUSTOMER SATISFACTION
